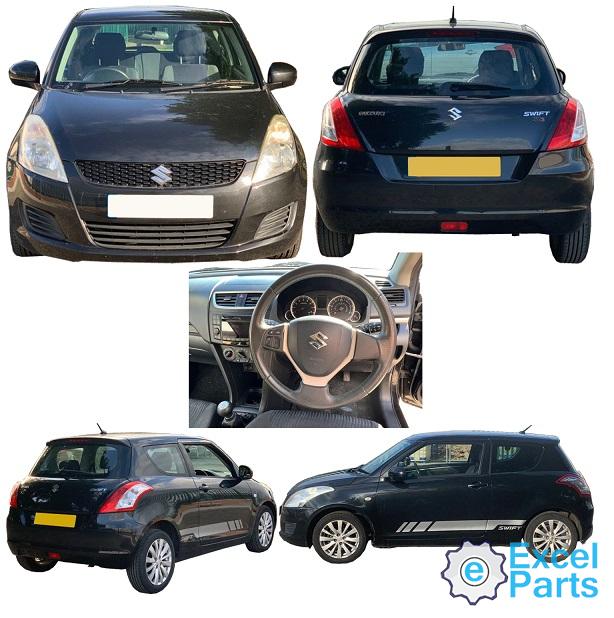

Suzuki Swift MK2 SZ3 RS413 60 REG GL ZA11S Engine Control Unit Ecu 1.3 1328 cc Petrol M13A 2005 - 2011 5 Speed Manual 3 Door Hatchback RS413-3 ZA11S007

Suzuki Swift MK2 SZ3 RS413 60 REG GL ZA11S Engine Control Unit Ecu 33920-72K01:072K0:MB112300-8262:M13 MT EU 07MY 1.3 1328 cc M13A 5 Speed Manual RS413-3 ZA11S007 2005,2006,2007,2008,2009,2010,2011 Petrol Mark2 SZ3 MK2 GL 60 REG TYPE 3

Additional Info

1. Function of ECU (33920-72K01)

The ECU manages several critical functions of the Suzuki Swift MK2 (ZC11S) with the M13A 1.3L petrol engine:

• Fuel Injection Control: Ensures optimal air-fuel mixture for performance and efficiency.
• Ignition Timing Management: Adjusts spark timing based on engine load and speed.
• Idle Speed Control: Maintains smooth idling under different conditions.
• Emissions Control: Regulates sensors like the oxygen (O2) sensor and catalytic converter.
• Diagnostics & Monitoring: Stores error codes when an issue is detected.

2. Fitment Compatibility

The ECU 33920-72K01:072K0:MB112300-8262 is specifically designed for:

• Vehicle Model: Suzuki Swift MK2 (ZC11S)
• Engine: M13A 1.3L Petrol (1328cc, 91BHP)
• Transmission: 5-speed Manual Transmission (MT)
• Production Years: 2005, 2006, 2007, 2008, 2009, 2010
• Region: European Model (EU Spec)

Important:
ECUs are often coded to the vehicle’s immobilizer system, so replacing or swapping an ECU may require reprogramming or immobilizer alignment.

3. Common Error Codes & Troubleshooting

If your ECU has logged a fault, the Check Engine Light (CEL) will illuminate, and an OBD2 scanner will reveal the error code. Here are some common ones:

4. How to Erase Error Codes (Reset ECU)

If an error has been fixed, the error code can be erased in three ways:

Method 1: Using an OBD2 Scanner (Recommended)

1. Connect an OBD2 scanner to the diagnostic port (under the dashboard).
2. Turn the ignition ON (engine OFF).
3. Use the scanner to read codes and select “Erase” or “Clear DTCs”.
4. Turn the ignition OFF, wait a few seconds, then start the engine.

Method 2: Battery Disconnect Reset

1. Turn off the ignition and remove the key.
2. Disconnect the negative battery terminal.
3. Press the brake pedal for 10-15 seconds to discharge residual power.
4. Reconnect the battery after 15 minutes and start the car.

Method 3: Manual ECU Reset (Throttle & Pedal Procedure)

1. Turn the ignition to ON (don’t start the engine).
2. Press and hold the gas pedal for 10 seconds.
3. Turn ignition OFF, release the pedal, and wait 5 minutes.
4. Restart the engine.

Note:
If a code keeps coming back, the issue is not fixed, and further diagnosis is needed.

5. Precautions During ECU Installation

When replacing or reprogramming the ECU, follow these precautions:

? Before Installing:

• Disconnect the battery (-) negative terminal to prevent power surges.
• Ensure the replacement ECU matches your original part number.
• Verify the immobilizer compatibility (some models require reprogramming).

?? During Installation:

• Handle the ECU with care (avoid static electricity and moisture).
• Connect all wiring harnesses securely and correctly.
• Avoid touching ECU pins to prevent static discharge damage.

? After Installation:

• Perform an ECU reset (as described above).
• Use an OBD2 scanner to check for stored errors.
• Start the engine and test the car under normal driving conditions.

6. Cross-Reference (Compatible ECU Part Numbers)

The following ECUs are cross-compatible with 33920-72K01, but reprogramming may be required:

7. ECU Reprogramming / Immobilizer Sync

If the new ECU does not start the car, it may need reprogramming due to immobilizer lock.

Reprogramming Methods

1. Using a Suzuki Dealer or Specialist:

   • Requires a Tech 2 or SDT-II scanner.
   • ECU must be coded to match the immobilizer system.

2. Using Aftermarket Tools (Advanced Users):

   • Tools like Autel, Launch X431, Kess V2, or MPPS can rewrite ECU firmware.
   • Requires downloading the correct ECU file (BIN/HEX).
   • Immobilizer bypass may be needed.

3. ECU Cloning (Alternative Solution):

   • A cloning service copies data from your old ECU to the replacement unit.
   • Useful if the original ECU is damaged.

Conclusion

The Suzuki Swift MK2 (ZC11S) ECU 33920-72K01 is a critical component managing the engine\\\'s performance, diagnostics, and emissions. If replacing it, ensure compatibility, follow precautions, and reset the ECU properly. If immobilizer issues occur, reprogramming or cloning may be necessary. Always use a reliable OBD2 scanner for troubleshooting.
